Middle frame (1*1) / Cold runner / Three-plates mold No.22448
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Phone Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | AD | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 470kg | Part Material | TPE |
| Part Weight | 10g | Surface Finish | Polished To SPI-A1 |
| Gate | Side Gate | Standard | LKM |
| Mold Base | Custom Mold Base | ||
| High Light | 140T Insert Injection Molding,TPE Insert Injection Molding,LKM Standard Insert Injection Molding |
||
Product Description

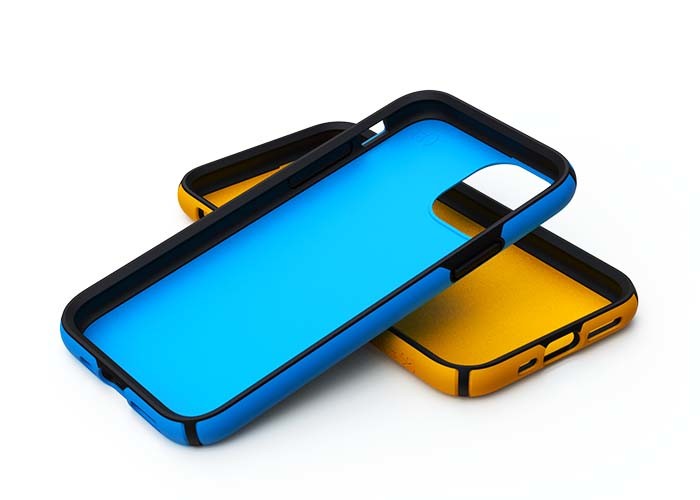

Middle frame (1*1)
No.22448
The mold was developed by Chitwing (designed and manufactured). It is designed with a side gate
and a custom mold base; the pin point gate turns to the side gate. The tool life is up to 50 K shots.
Mold good fitted and has good anti-fatigue performance, and meets the LKM standard.
| Type | Three-plates mold |
| Injection/runner type | Cold runner |
| Cavity | Harden |
| Core | Harden |
| Part | ① Material | TPE | |
| ② Weight | 10g | ||

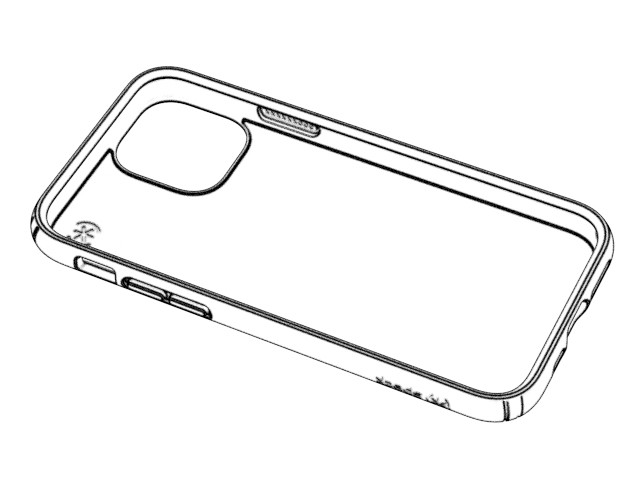

| ③ Size |
150.4X 78.5X 11.8mm |
||

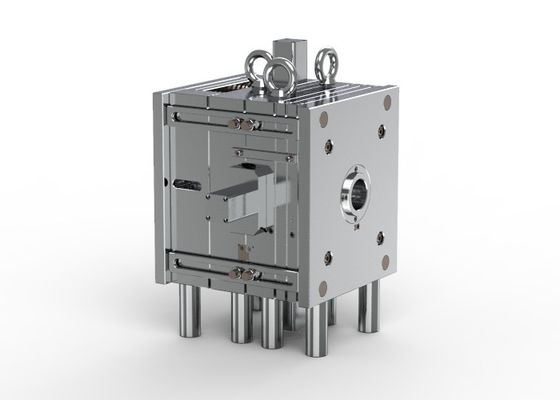

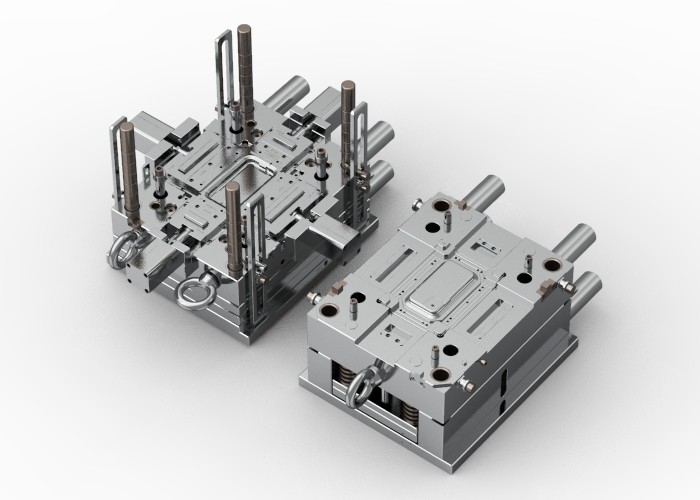

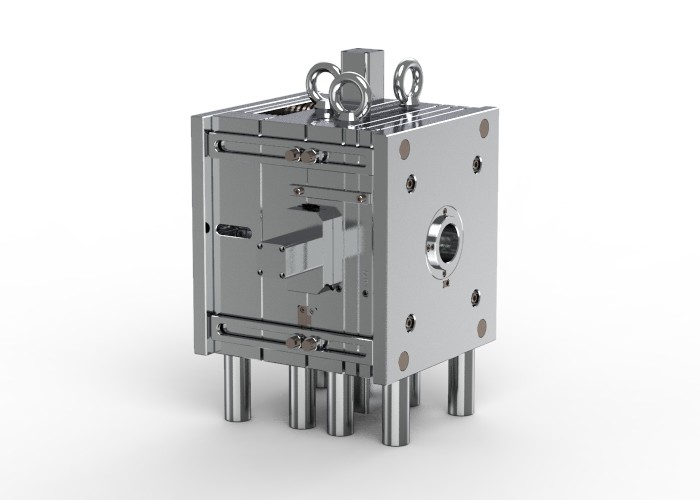

The mold size is 400 X 450 X 426mm (net weight 470 kg); fit 140T machine. The mold surface is

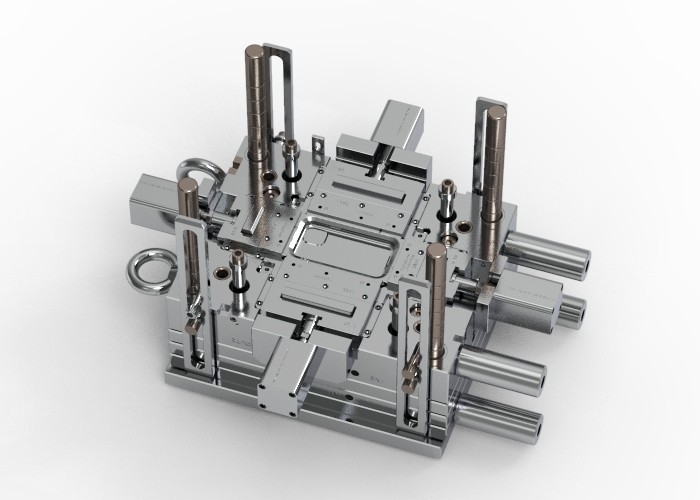

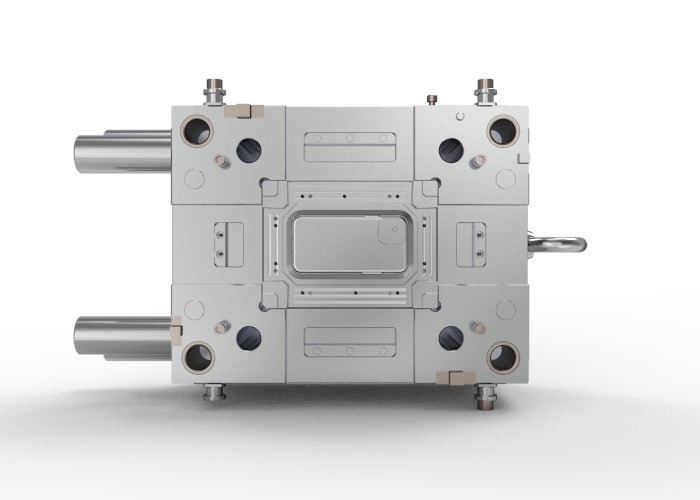

polished to A1, with 4 sliders (cylinders), more scientific design and shorter cycle time.

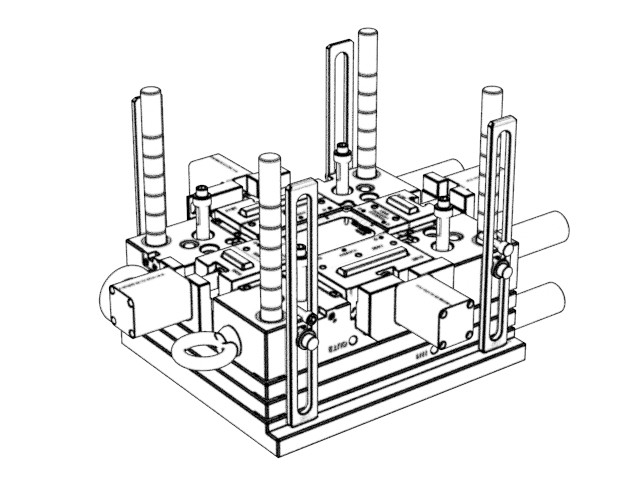

Display diagram
