Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848

  • Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
  • Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
  • Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
  • Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
  • Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848
Place of Origin Vietnam
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Digital Pen
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 180 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features In-mold Unscrewing Size 150.000 X 220.000 X 177.000
Material PA Injection Cold Runner
IMM Tonnage BOY10T Mold Weight 47KG
Type Two-plates Mold Steel Of Cavity Harden With 1*8/S136
Steel Of Core Harden With 1*8/S136
High Light

Stylus Tip Cavity Insert Injection Molding

,

LKM Cavity Insert Injection Molding

,

2 plate injection mould 500k Shots
Leave a Message
Product Description

Stylus Tip (1*8)

No.24848



  Type   Standard   Tool life   Mold net weight   IMM Tonnage
  Two-plates mold   LKM   500k shots   47kg   BOY10T



Length
150
Width
220
Height
177



Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 0



Gate Part material Injection type Runner type Features
Sub gate PA Cold runner Cold runner In-mold unscrewing



Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 1



Part size

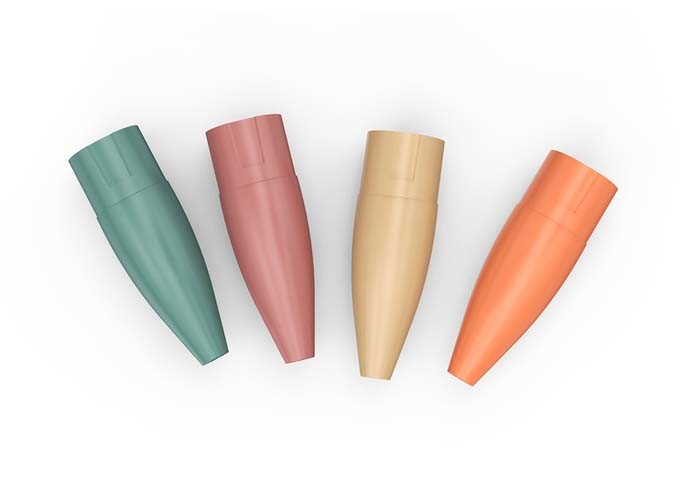

Φ6.0*10.0
Part weight
0.1g



  Surface finish   A surface EDM with Charmilles VDI18#
  Steel of cavity   Harden with 1*8/S136
  Steel of core







Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 2







This is a two-plates mold developed Chitwing with cold runner by considering the semi-crystalline and thermoplastic PA material characteristics of low density and high thermal stability and cost-effective performance; with high hardness and anti-wearing performance, suitable for mass production; scientific mechanism for in-mold unscrewing, and short cycle time; molded parts have full and smooth body and precise thread; the tool life is up to 500k shots







Display diagram

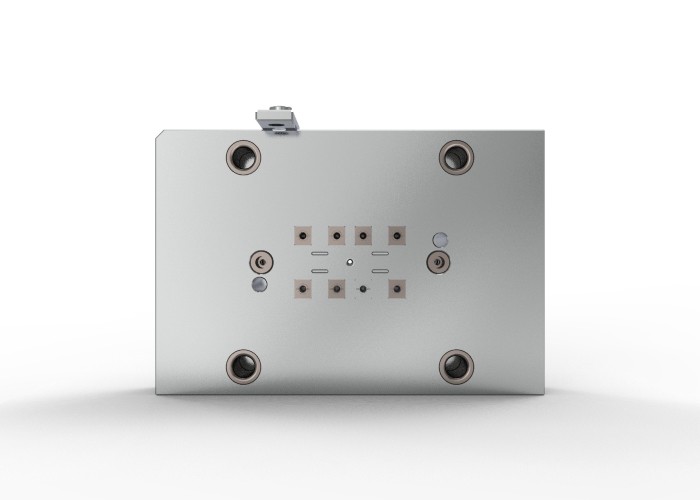

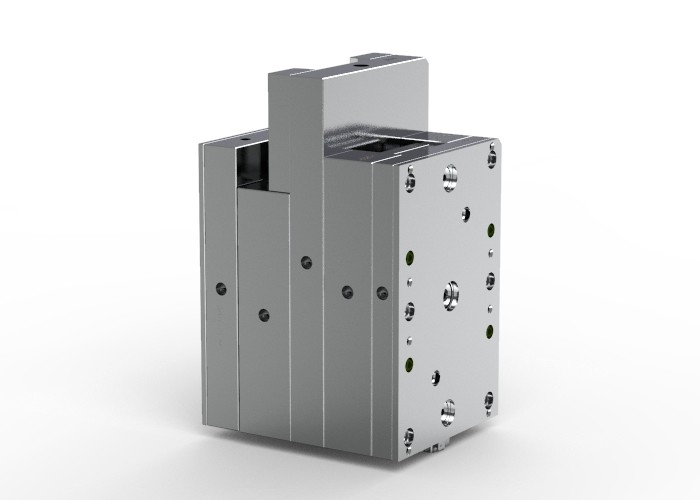

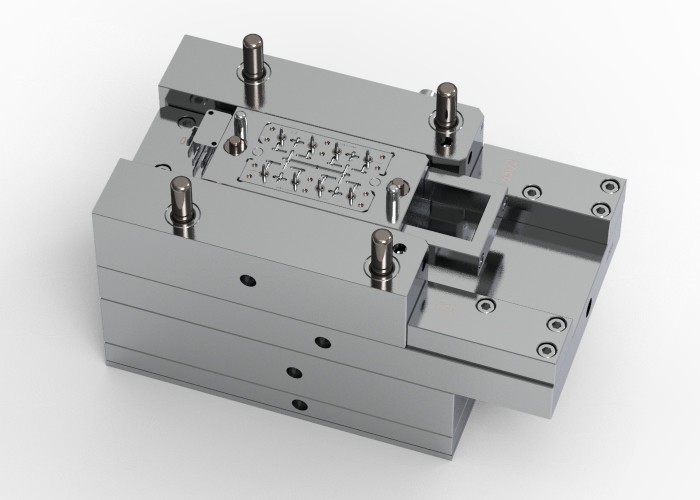

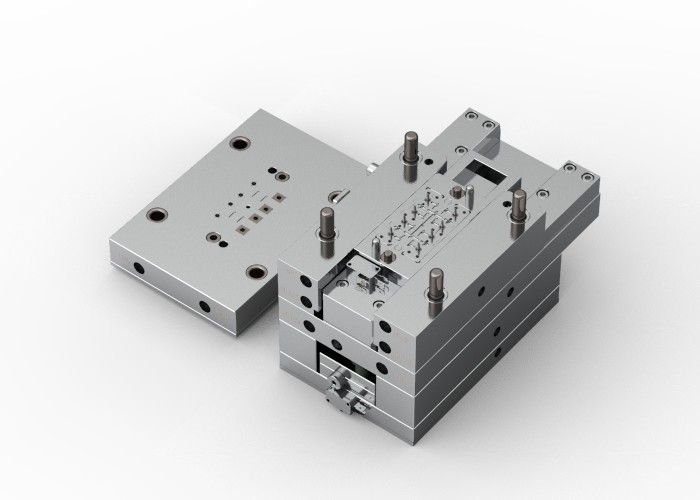

Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 3Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 4Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 5Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 6Stylus Tip (1*8) / Cold runner / Two-plates mold / No.24848 7

Tags:

Insert Injection Molding

Metal Insert Moulding

two plate injection mould
