Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849

  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
  • Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849
Place of Origin Vietnam
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Digital Pen
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 180 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IMM Tonnage BOY10（T） Net Weight 47（KG）
Tool Life 500K Shots Type Two-plates Mold
Standard LKM Gate Horn Gate
Part Size Φ6.0*10.0
High Light

Horn gate Micro Insert Molding

,

LKM Micro Insert Molding

,

Cold Runner Micro Insert Molding
Leave a Message
Product Description

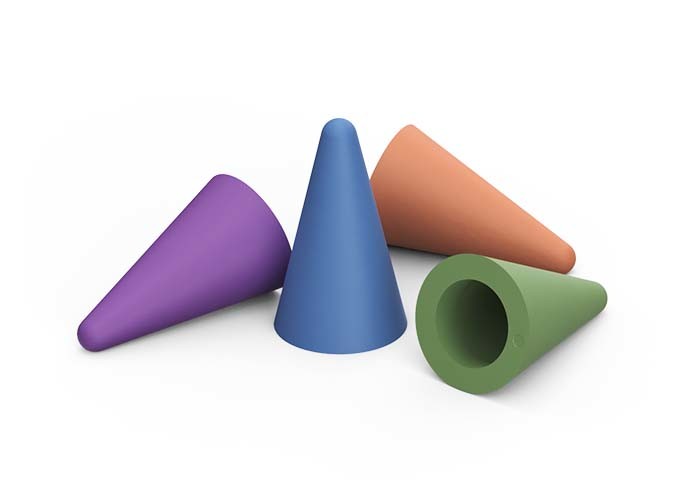

Handwriting Pen Tip (1*8)

No.24849



  Mould

  information

   Size   150.000 X 220.000 X 177.000
  Gate   The horns are glued
  Mold lifespan   500k shots



Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 0



Mould Details

   Type   Two plate molds
  Product material   PA
  Surface Finishing   Exterior face Charmey VDI18#
  Standard   LKM
  Cavity/Core material   1*8/S136 quench
  Injection   Cold runner



Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 1



Service

One stop

service

  ID/MD evaluation-Tool design-Tool fabrication-Part

  manufacturing-Pre process-Post process-Assembly-Complete

  unit production
Design   Professional CAD/CAM technical platform
  3D:UG 4.0, 2D:CAD







Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 2

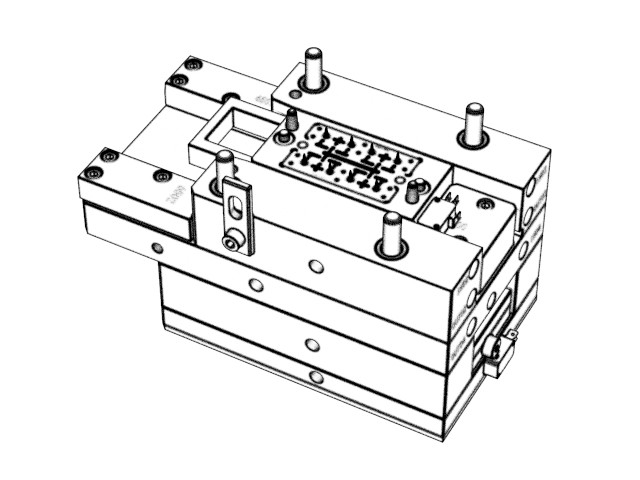

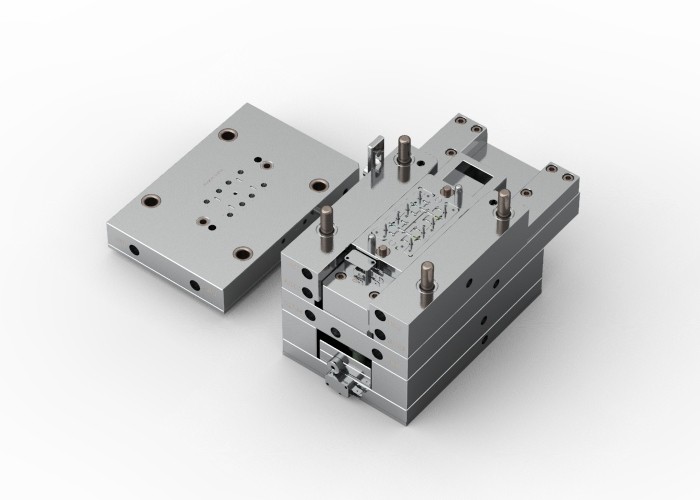

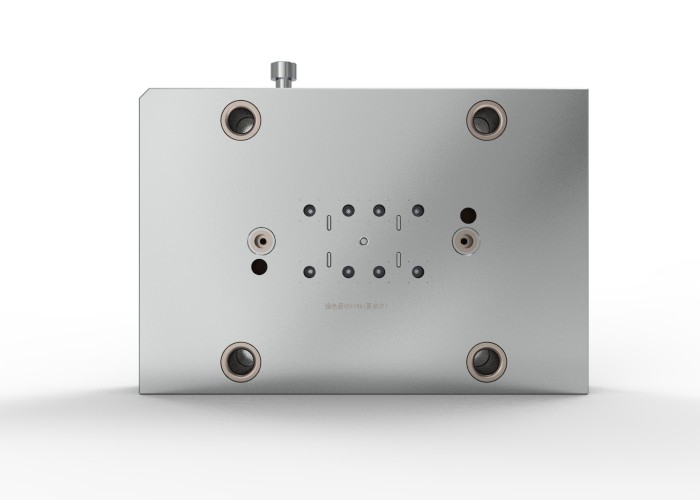

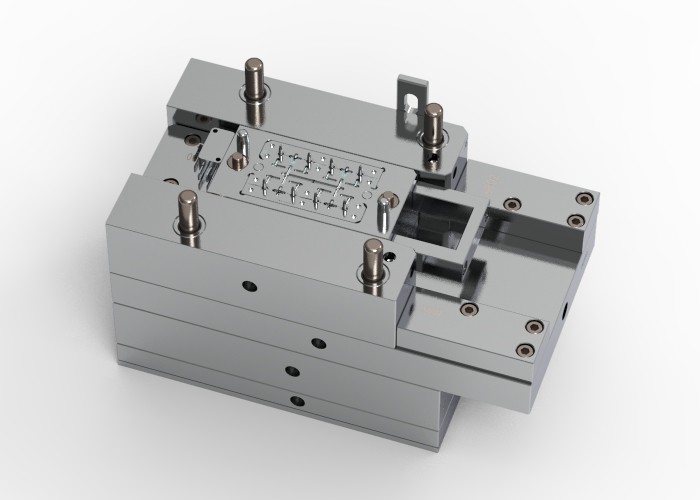

Display diagram



Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 3Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 4Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 5Handwriting Pen Tip (1*8) / Cold runner / Two-plates mold / No.24849 6
