Front Housing / Cold runner / Three-plates mold No.22398

  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
  • Front Housing / Cold runner / Three-plates mold No.22398
Place of Origin Vietnam
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Phone Case
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 180 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 4 Large Slides & 2 Inner Slides Name AD
IMM Tonnage 80T Mold Weight 350kg
Product Material PC Runner Cold Runner
Mould Life ≥500000 Shots Design Software (3D)UG 4.0/ (2D）CAD
Mould Base LKM
High Light

500000 shots Insert Injection Molding

,

350kg Insert Injection Molding

,

LKM rubber insert molding
Leave a Message
Product Description

Front Housing

No.22398



The mold adopts standard mold base P/N DAI3040.60100100.



Front Housing / Cold runner / Three-plates mold No.22398 0



  Size   Standard   Type
  Length   Width   Height
  350   400   416   LKM   Three-plates mold
  Mold net weight 350 kg, IMM tonnage 80T
  Part material   PC
  Part size   41.3*56.24*10.6
  Part weight   3.5g
  Tool life   500k shots



Front Housing / Cold runner / Three-plates mold No.22398 1



Gate: side gate (the pin-point gate turns to the side gate)



  Standard mold base
  Surface finish
  Large surface EDM with Charmilles VDI18#   Waterproof surface polished to 1000# sandpaper
  Steel of cavity and core
  Harden (1*1/S136)







Front Housing / Cold runner / Three-plates mold No.22398 2







Injection/Runner Type: Cold runner

This is a three-plates mold developed (designed) by Chitwing, with 4 large slides and 2

inner slides, high-precision industrial processing, higher anti-wearing performance and

good fitted; with 500k shots life, LKM standard, smooth surface and minimized gate

marks

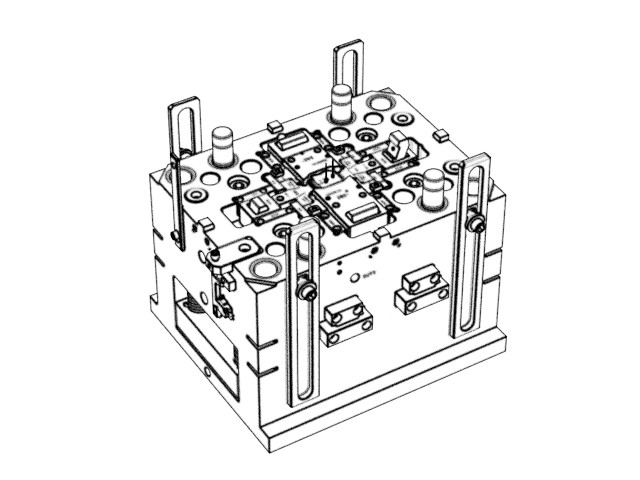

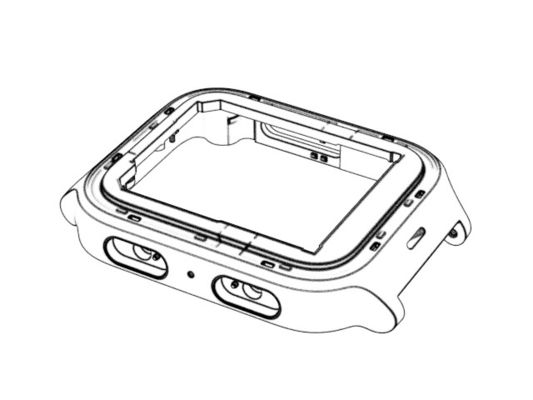

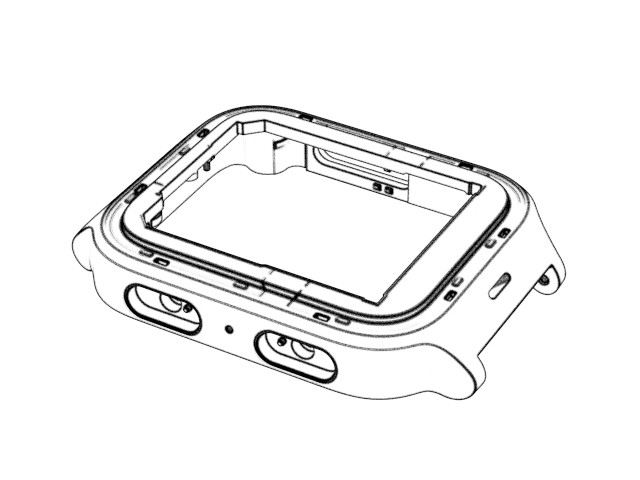

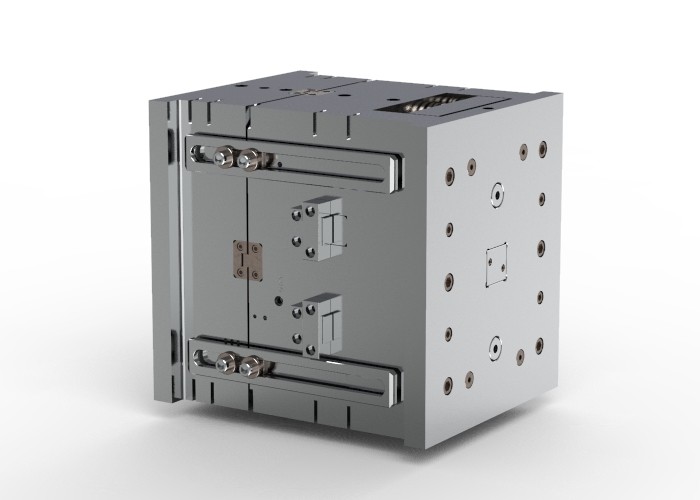

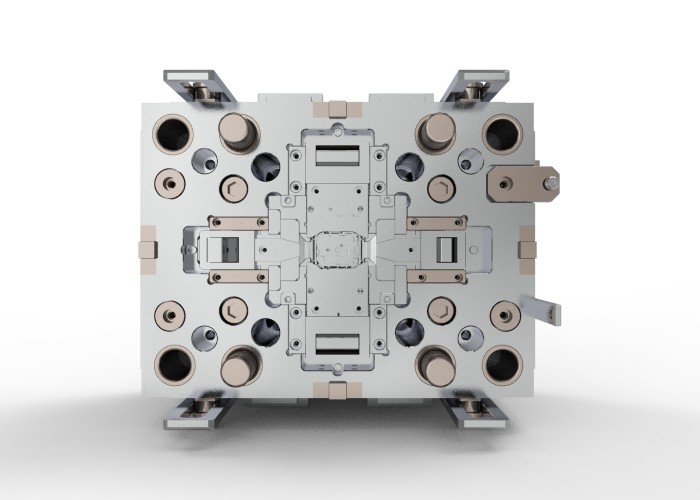

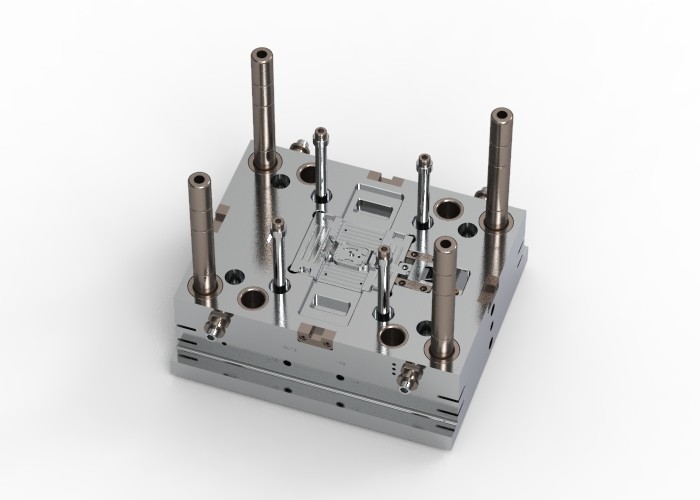

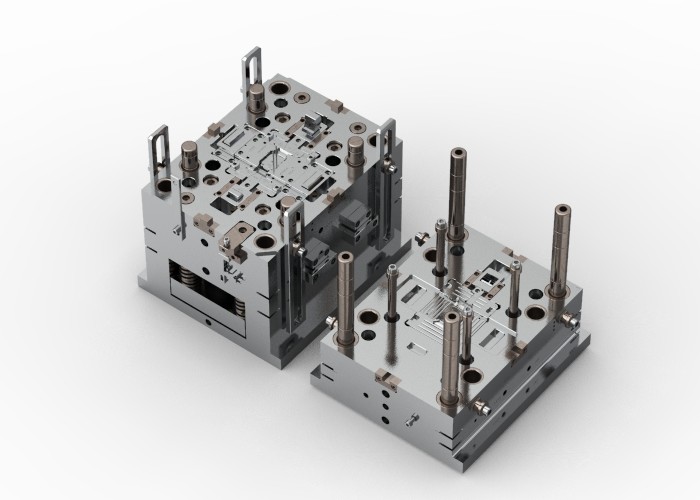

Display diagram



Front Housing / Cold runner / Three-plates mold No.22398 3

Front Housing / Cold runner / Three-plates mold No.22398 4Front Housing / Cold runner / Three-plates mold No.22398 5Front Housing / Cold runner / Three-plates mold No.22398 6
