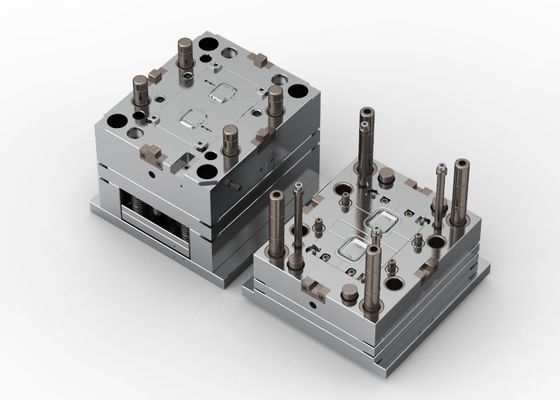

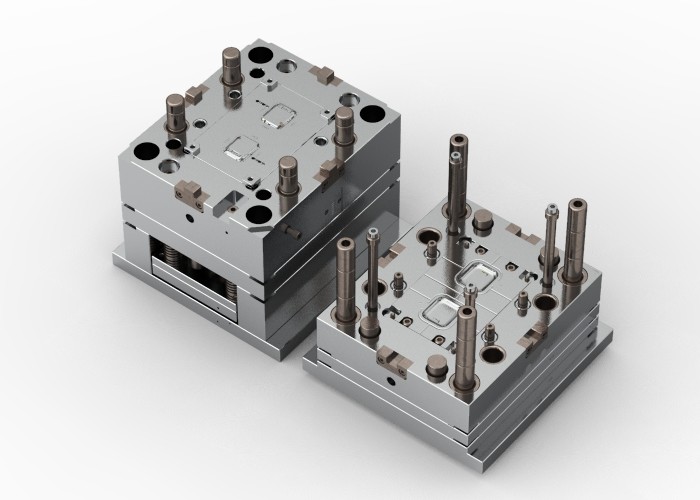

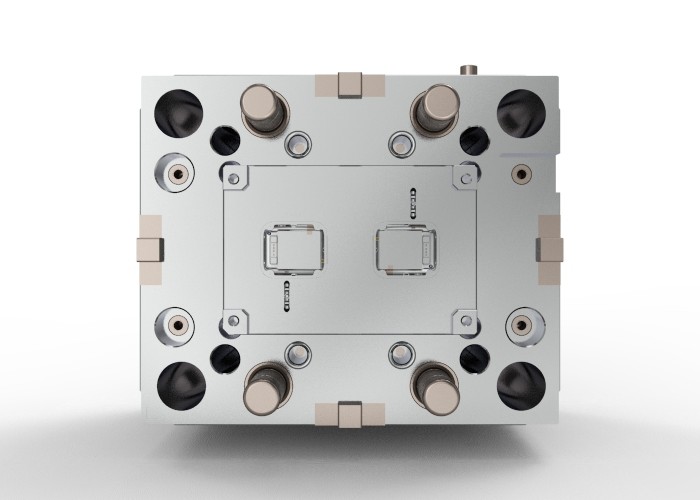

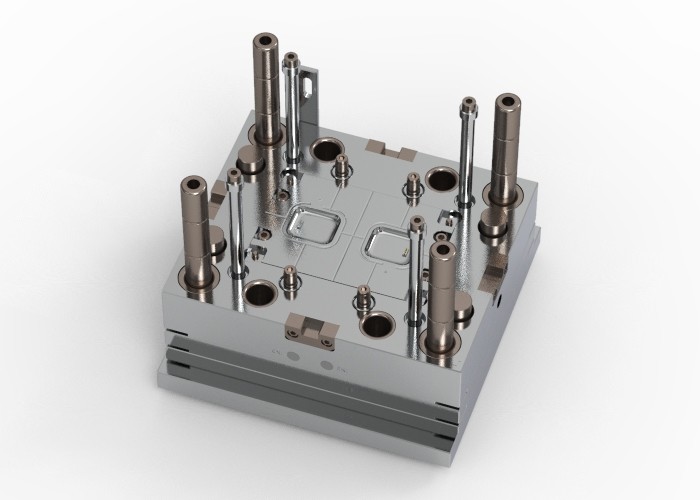

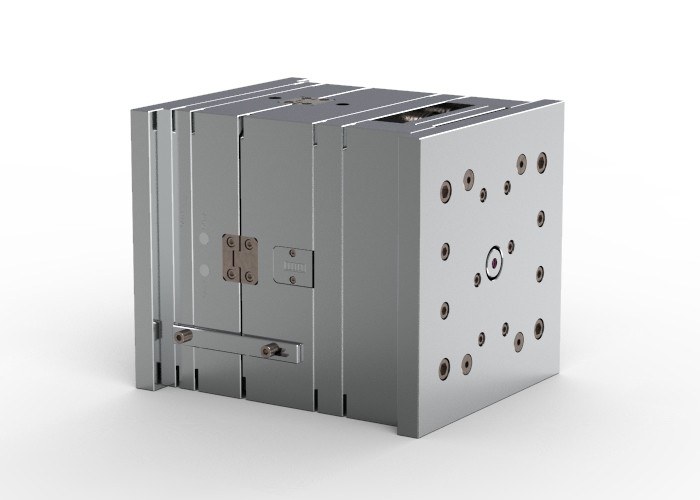

Smartwatch Back Housing / Cold runner / Three-plates mold No.22399
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 3 Lifters | Size | 300 X 300 X 351 |
|---|---|---|---|
| IMM Tonnage | 80T | Mold Weight | 195kg |
| Standard | LKM | Gate | Pin Point Gate Turns To The Side Gate |
| Injection/runner Type | Cold Runner | Part Material | PC+20GF |
| High Light | Three Plate Insert Injection Molding,80T Insert Injection Molding,LKM Three plates molding |
||
Product Description

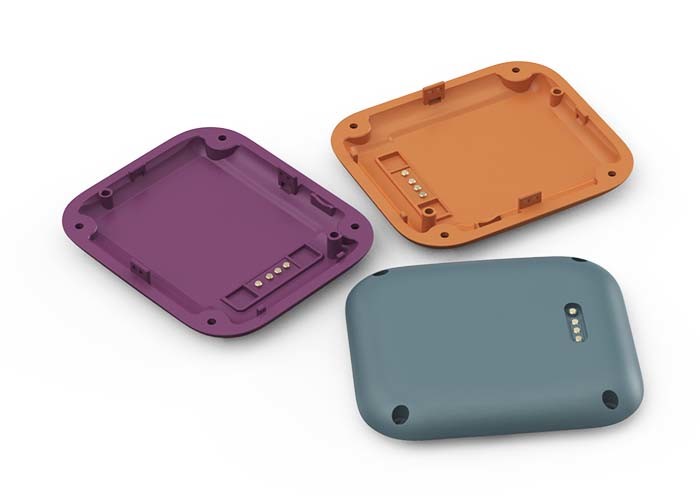

Smartwatch Back Housing
No.22399
Custom mold base DDI2530 1 set A = 60 B = 90 C = 80, sub gate,
the pin point gate turns to the side gate, LKM standard
| Size | Net weight | ||
| Length | 300 | ||
| Width | 300 | 195kg | |
| Height | 351 | ||
| Part material | Type | ||
| PC+20GF | Three-plates mold | ||
| Part weight | Injection/runner type | ||
| 4.1g | Cold runner | ||
| Part size | Standard | ||
| 40.4*47.3*4.95 | LKM | ||
The surface EDM with Charmilles VDI24#, the waterproof surface polished to 1000# sandpaper;
harden the cavity and core to have higher hardness and anti-wearing performance;
the advanced machining technology makes the mold good fitted and the tool life is
up to 500k shots
| Part material | PC+20GF |
| Features | 3 lifters |
IMM tonnage: 80T

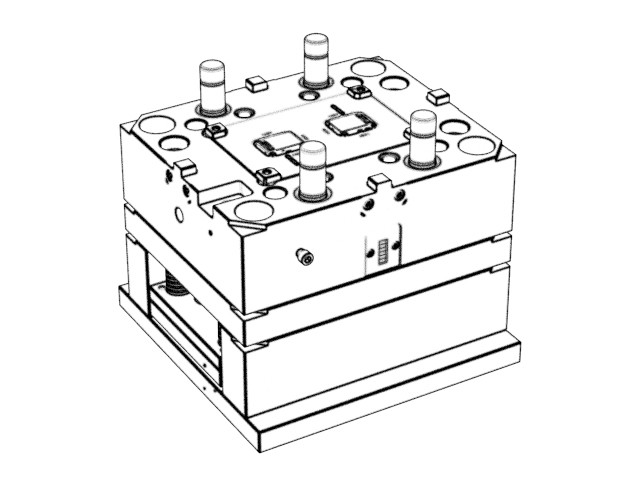

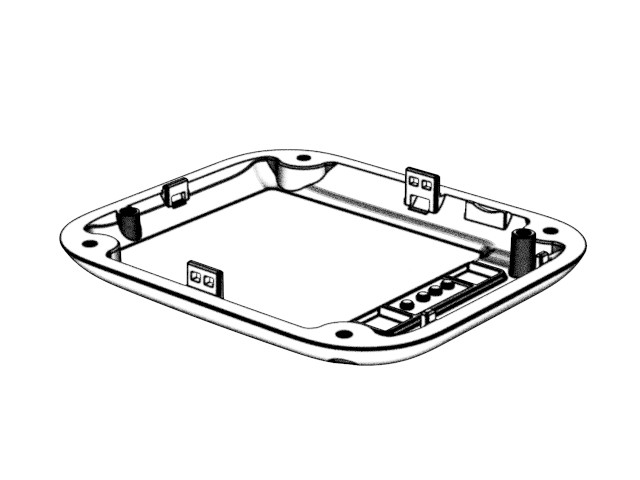

Display diagram
