Smartwatch Middle Frame Bracket (1*2) / Cold runner / Three-plates mold No.22401
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 500 X 346 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 373kg | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Base | LKM | Mold Life | 500K Shots |
| Gate Type | 3 Pin Point Gates+1 Sub Gate | ||
| High Light | Smartwatch Bracket Cold runner Mold,80T Cold runner Mold,500000 shots Cold runner Mold |
||
Product Description
Smartwatch Middle Frame Bracket (1*2)
No.22401
| Size | Gate | ||||
| Length | Width | Height | |||
| 350 | 500 | 346 | 3 pin point gates+1 sub gate | ||
| Tool life | Surface finish | ||||
| 500k shots | Large surface EDM with Charmilles VDI24# | ||||
| Mold base | Standard | Part material | |||
| Type | Three-plates mold | PC | |||
| Injection/runner type | Steel of cavity and core | ||||
| Cold runner | Harden (1*2/S136) | ||||

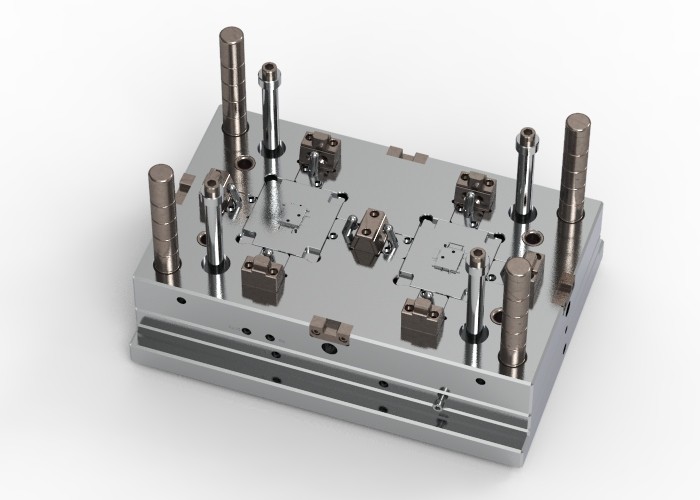

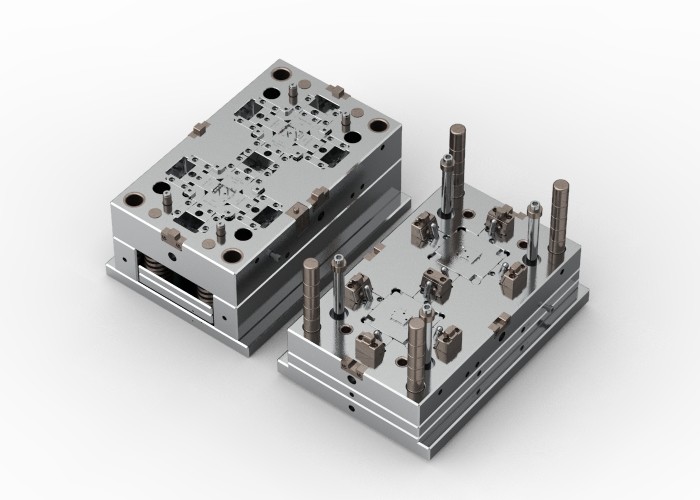

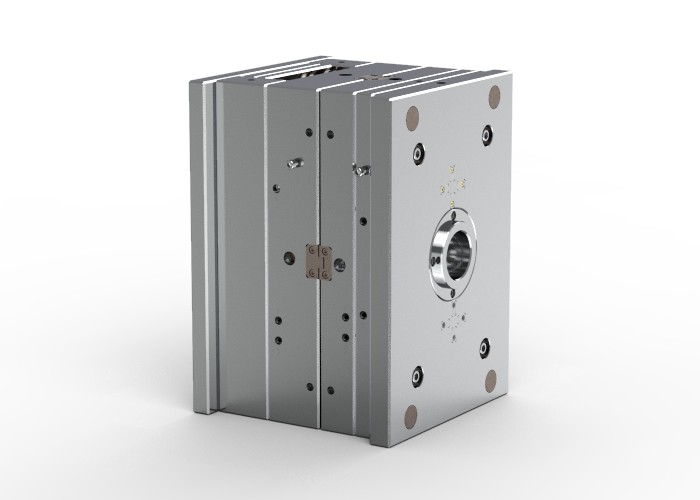

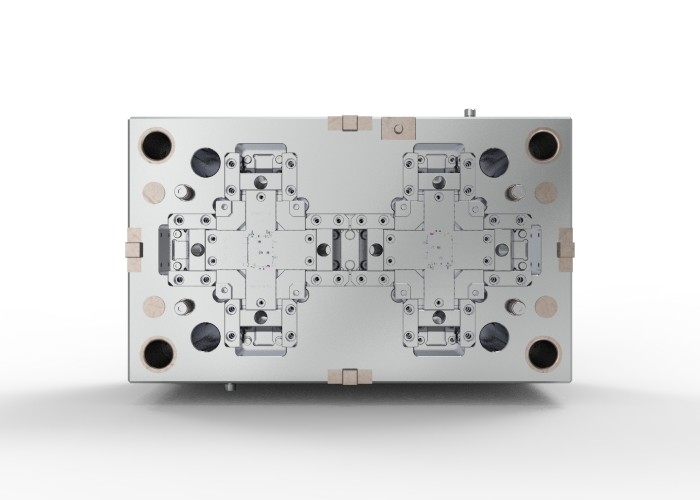

The mold was developed by Chitwing (designed and manufactured), insert molding with steel
sheet, 4 slides, effectively saving the production costs, with shorter cycle time and more aesthetic
molded parts

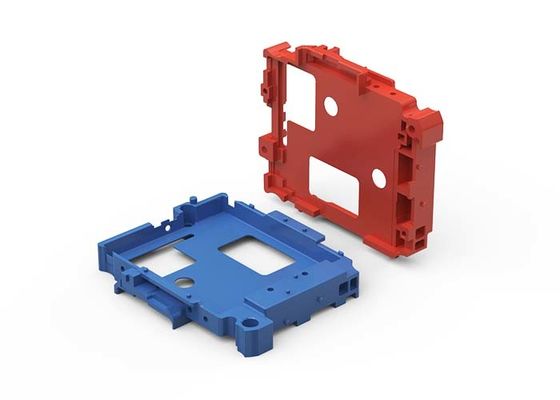

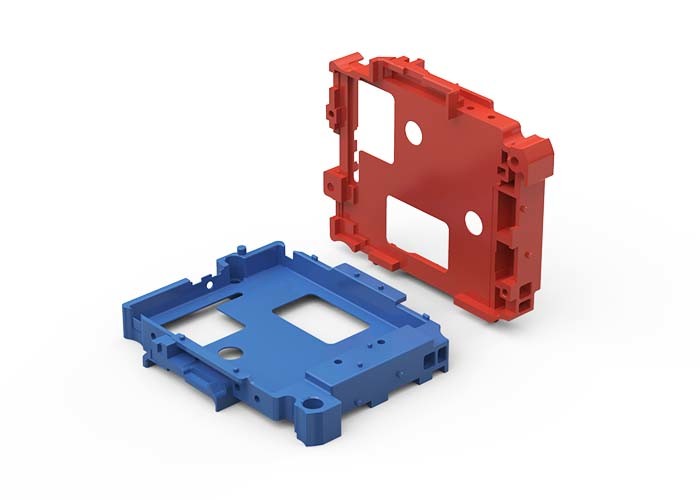

The mold net weight is 373 kg, and fits 80T machine. The part size is 33.3 * 41.7 * 6.6mm, and the
part weight is 1.5g.

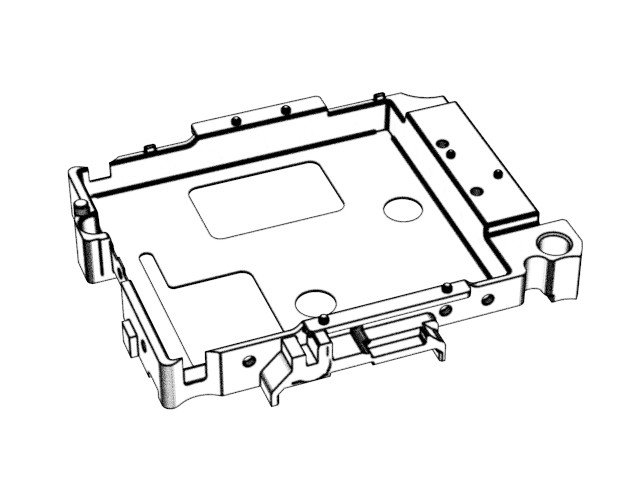

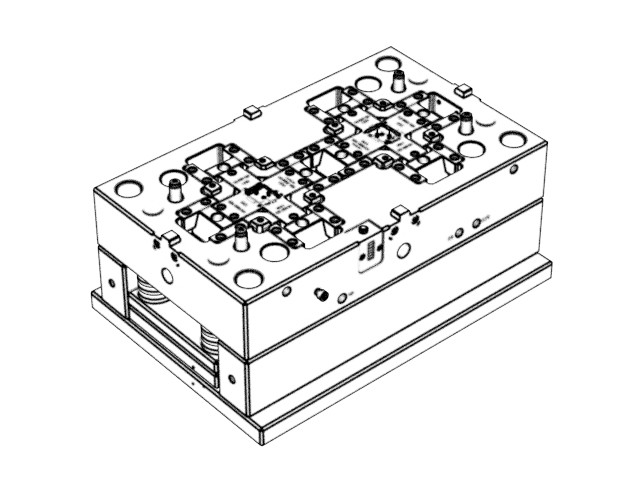

Display diagram
