Transparent Front Housing/ Cold runner / Three-plates mold No.22398
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Inner Slides | Size | 350 X 400 X 416 |
|---|---|---|---|
| IMM Tonnage | 80T | Mold Weight | 350kg |
| Standard Mold Base | DAI3040.60100100 | Injection/runner Type | Cold Runner |
| Part Material | PC | ||
| High Light | LKM Insert Compression Molding,2 Inner Slides Insert Compression Molding,Cold runner silicone insert molding |
||
Product Description

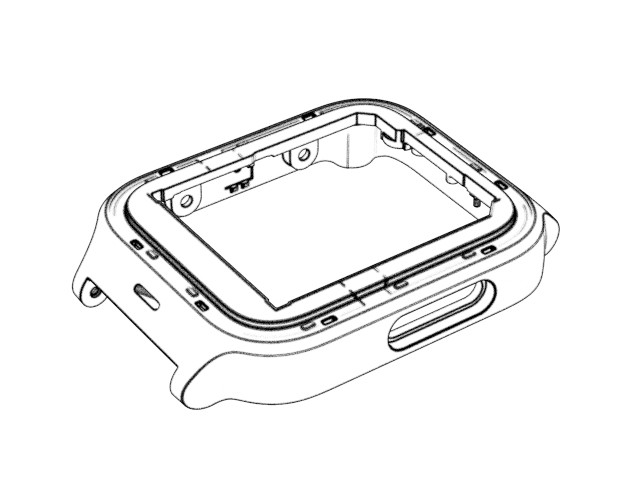

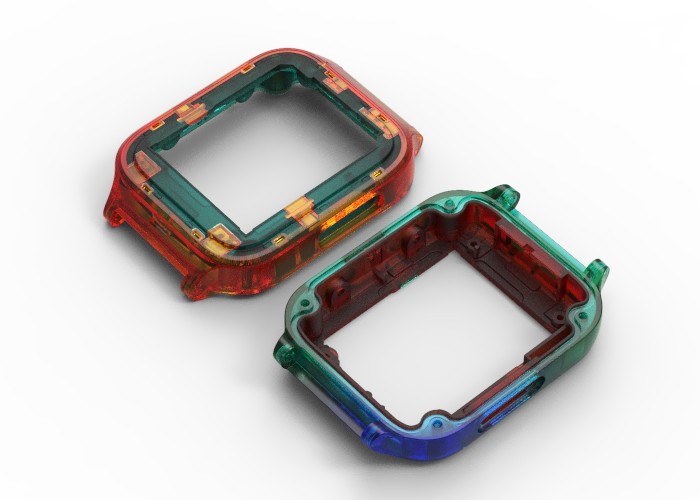

Transparent Front Housing
No.22398
Brand: Chitwing
Standard: LKM
Type: three-plates mold
Mold net weight: 350 kg
Mold size: 350 X 400 X 416mm
Part net weight: 3.5g
Part size: 41.3 * 56.24 * 10.6mm
IMM tonnage: 180T
Standard mold base DAI3040.60100100, harden the cavity and core, the pin point gate turns to the
side gate, and tool life up to 500k shots
| Injection/runner type | Part material | Features | |||
| Cold runner | PC | 4 large slides & 2 inner slides | |||
| Surface finish | |||||
| Large surface EDM with Charmilles VDI18# | Waterproof surface polished to 1000# sandpaper | ||||
Surface is hardened with hardness > 600HV, mature processing technology makes the mold
have higher hardness and anti-wearing performance, mold good fitted, uniform pressure,
high-precision parts

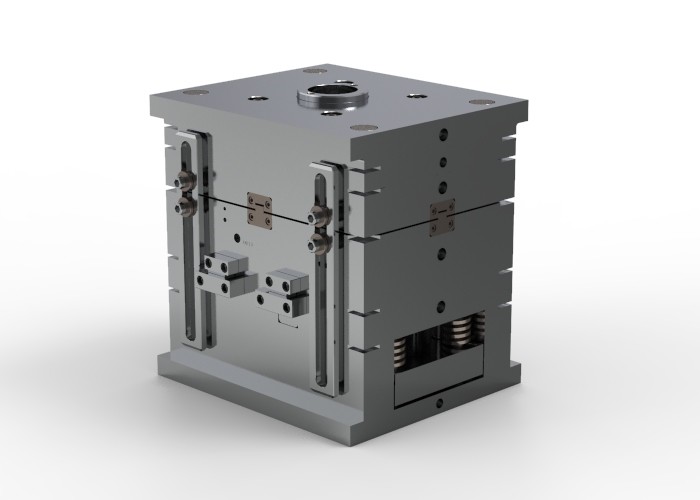

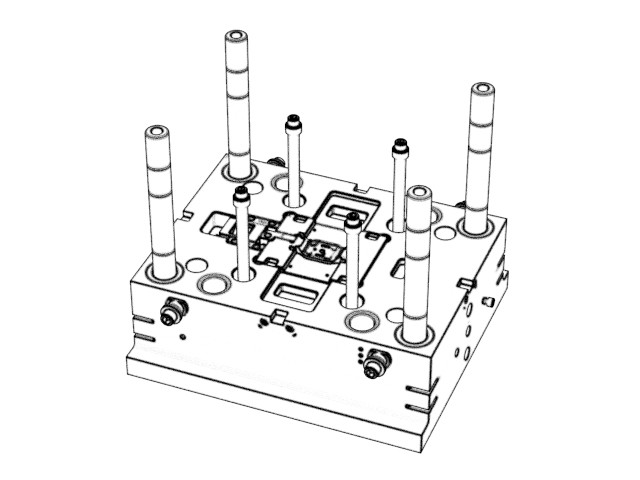

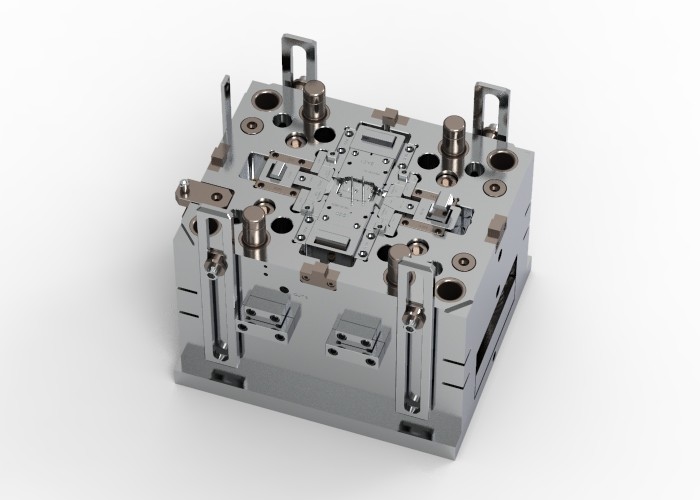

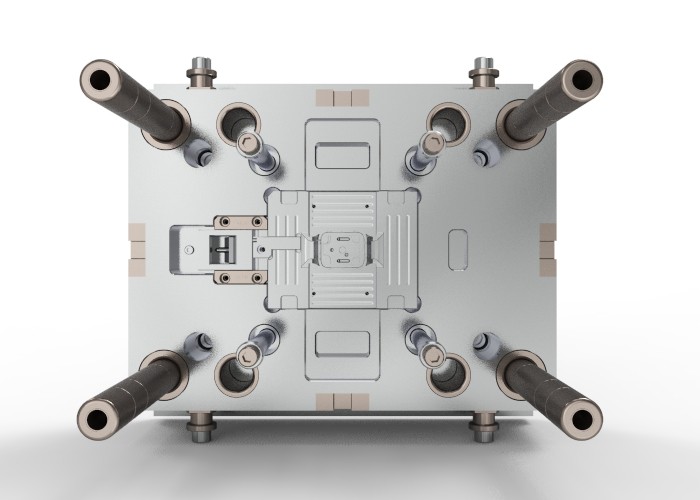

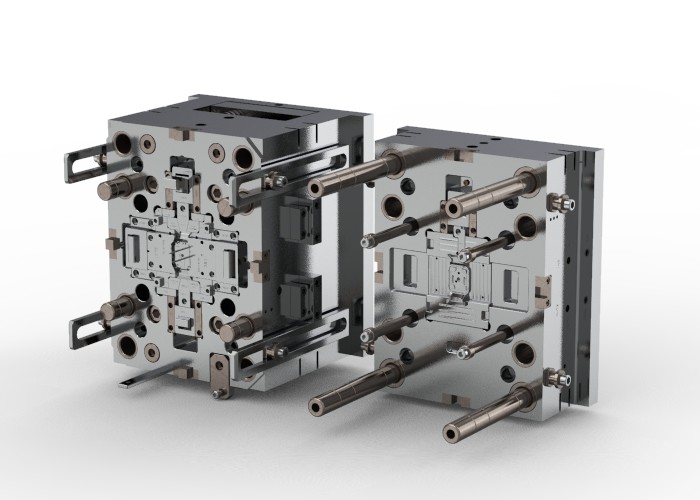

Display diagram
