Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 300 X 351 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 195kg | Lifters | 3 |
| Type | Three-plates Mold | Part Material | PC+20GF |
| Gate | The Pin Point Gate Turns To The Side Gate | Tool Life | 500k Shots |
| Cavity | Harden (1*1/S136) | Core | Harden (1*1/S136) |
| Design Software | 3D:UG 4.0, 2D:CAD | ||
| High Light | Smartwatch Plastic Insert Moulding,80T Plastic Insert Moulding,500k shots Cold runner injection molding |
||
Product Description

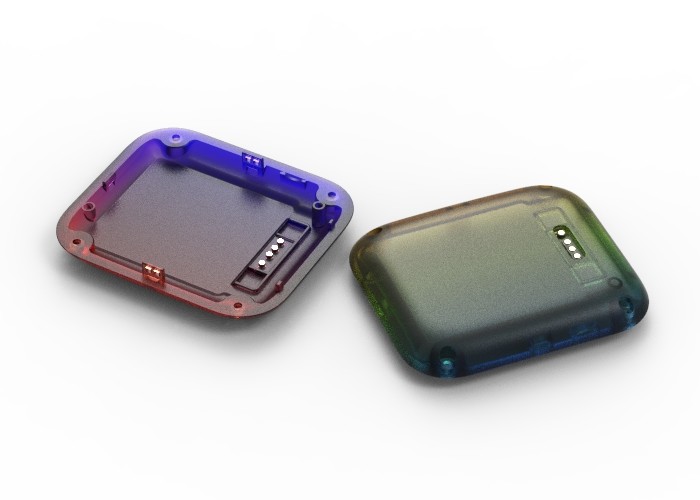

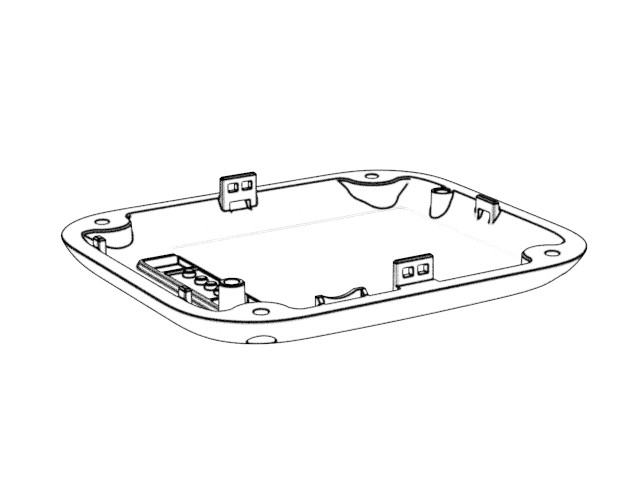

Transparent Smartwatch Back Housing
No.22399
| Brand: Chitwing | |
| Origin: Guangdong, China | |

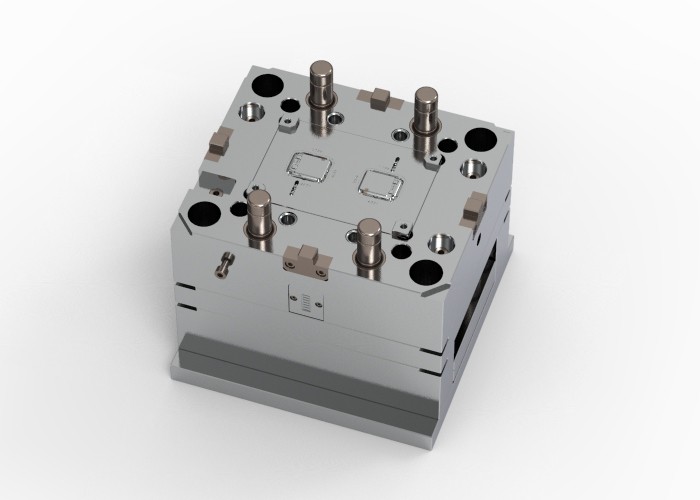

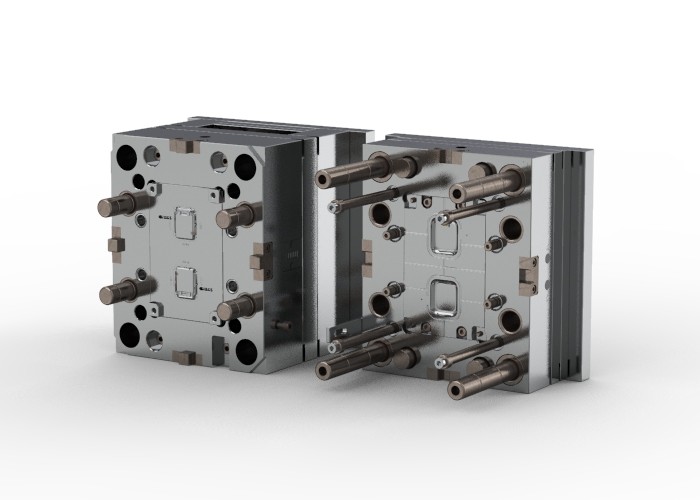

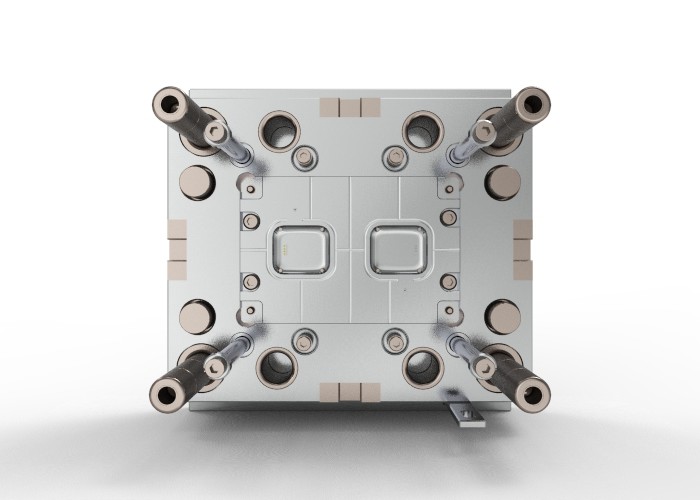

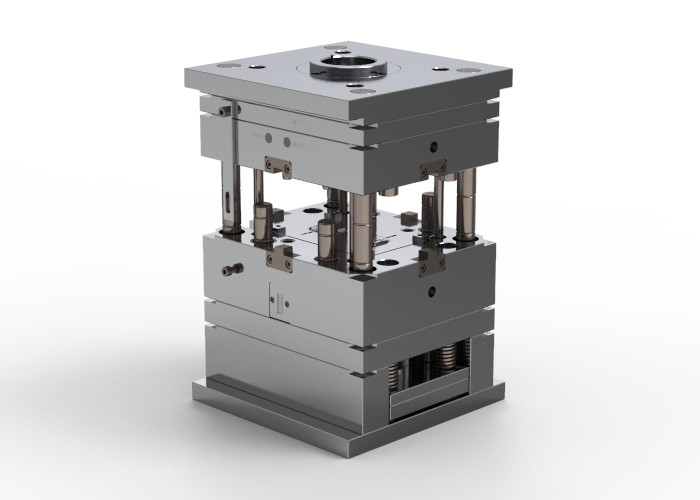

| Type | Three-plates mold |
| Injection/runner type | Cold runner |
| Part material | PC+20GF |
The mold is designed with a sub gate (the pin point gate turns to the side gate),
custom mold base, LKM standard, and 3 lifters
| Mold size | Net weight | ||
| Length | Width | Height | 195kg |
| 300 | 300 | 351 | |
Large surface EDM with Charmilles VDI24#, waterproof surface polished to 1000# sandpaper
| Cavity | Harden |
| Core | |
| Tool life: 500k shots | |
The mold fits 80T machine, the part net weight is 4.1g,
and the part size is 40.4 * 47.3 * 4.95mm

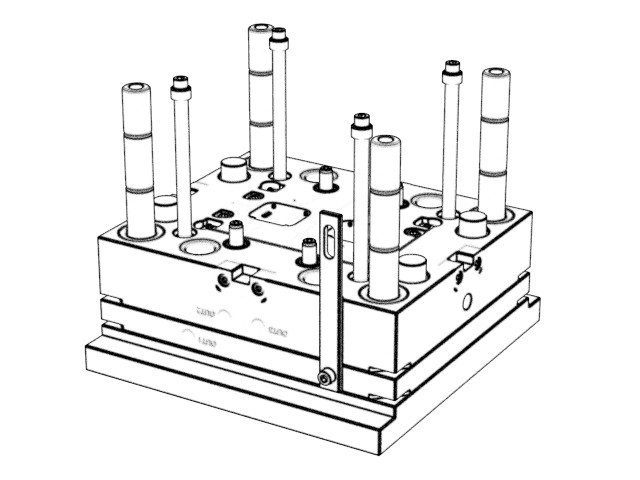

Display diagram
